Bearing Assembly at the Outlet End - SP32L

Bearing Assembly at the Outlet End

Item 1:
       1 External bearing housing
         42830-001 (C10063000)   #SUB:CR32S01-001

Item 2:
       1 Internal bearing housing
         42826-001 (B10116000)   #SUB:CR32S02-001

 Item 3:
        1 Spacer
	  42848-001 (B10117000)  #SUB:CR32S03-001

Item 4:
       1 Cover
  	 42829-002 (C10064000)   #SUB:CR32S04-001

Item 5:
       1 Split locking ring
         43175-001 (B10118000)   #SUB:CR32S05-001

Item 6:
       1 Roller thrust bearing 29328E
         20136-034               #SUB:CR32S06-001

Item 7:
       1 Bearing 23030 CCK/W33
         20347-001               #SUB:CR32S07-001

Item 8:
       1 Adapter H3030
         20144-015               #SUB:CR32S08-001

Item 9:
       1 Seal 12015012
         20071-129               #SUB:CR32S09-001

Item 10:
        2 Seal 16019015
          20071-136              #SUB:CR32S10-001

Item 11:
        8 Helical spring
          20438-008 (A10038001)  #SUB:CR32S11-001

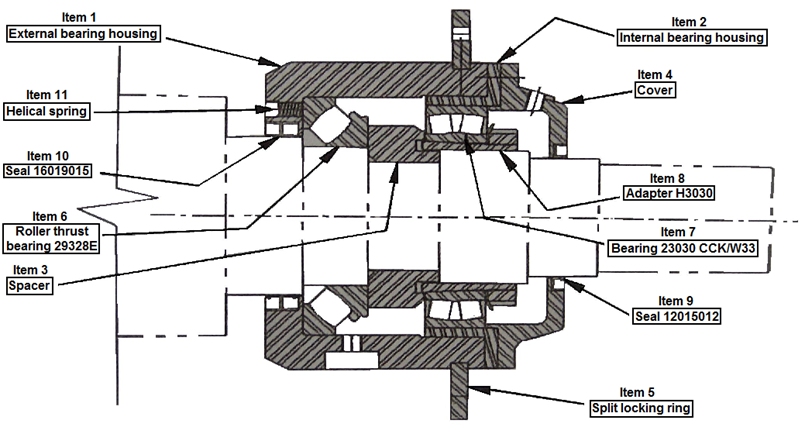

Outlet bearing assembly components - SP32L

Item 1
External bearing housing

Item 2
Internal bearing housing

Item 3
Spacer

Item 4
Cover

Item 5
Split locking ring
